10 Best NEMA 14‑50 Plug Wiring Tips for Power‑Hungry Setups
1. Use 6‑AWG copper wire for a 50 A circuit. 2. Choose a UL‑listed or ETL‑listed NEMA 14‑50 plug. 3. Select a weather‑proof IP66‑rated enclosure for outdoor use. 4. Connect a four‑wire cable (two hots, neutral, ground) properly. 5. Tighten all terminal screws to prevent loosening. 6. Keep the plug housing UV‑resistant ABS or polycarbonate. 7. Verify polarity before energizing. 8. Use a gasket‑sealed cover when not in use. 9. Match the plug rating to your device’s 125 V/250 V demand. 10. Test the installation with a multimeter; the next section shows how.
Key Takeaways
- Use 6 AWG copper (or larger) conductors for the hot, neutral, and ground to safely carry 50 A continuous load.
- Install a UL‑ or ETL‑listed NEMA 14‑50R receptacle in an IP66‑rated, weather‑proof enclosure for outdoor use.
- Connect the two hot wires to the brass terminals, the neutral to the silver terminal, and the ground to the green screw, tightening all screws to manufacturer torque.
- Verify voltage rating (125 V/250 V) matches your equipment; dual‑rated devices can run at either voltage, but single‑voltage gear must be wired accordingly.
- Test continuity and polarity with a multimeter before energizing, and periodically inspect connections for corrosion or looseness.
| NEMA 14-50P to 14-50R Generator Adapter Plug (50A) |  | Easy Installation | NEMA Configuration: 14‑50P to 14‑50R | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis |
| STARELO NEMA 14-50R 50A RV Power Outlet Box | Weatherproof Choice | NEMA Configuration: 14‑50R | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis | |
| QWORK 14-50P 50A RV Plug with Handle |  | Handle Convenience | NEMA Configuration: 14‑50P | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis |
| Camco 50A RV Plug with Ergonomic Handle |  | Ergonomic Grip | NEMA Configuration: 14‑50P | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis |
| ENERLITES Straight Blade Angle Plug NEMA 14‑30/50P 50 A Black |  | Straight Blade | NEMA Configuration: 14‑30P / 14‑50P | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis |
| RVGUARD 50 Amp NEMA 14-50P Plug with Disconnect Handle Green |  | Disconnect Safety | NEMA Configuration: 14‑50P | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis |
| Veepeak 50A RV Plug Extension with Grip Handle |  | Grip Handle | NEMA Configuration: 14‑50P | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis |
| Nilight 50 Amp RV Male Plug (NEMA 14‑50P) with Handle |  | Heavy-Duty Handle | NEMA Configuration: 14‑50P | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis |
| RV NEMA 14-50P 50A Male Power Plug (ETL Certified) |  | Reliable Connectivity | NEMA Configuration: 14‑50P | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis |
| NEMA 14-50P 50 Amp 125/250V Heavy-Duty Plug |  | Industrial Strength | NEMA Configuration: 14‑50P | Voltage Rating: 125 V/250 V | Amperage Rating: 50 A | VIEW LATEST PRICE | Read Our Analysis |
You may be interested
More Details on Our Top Picks

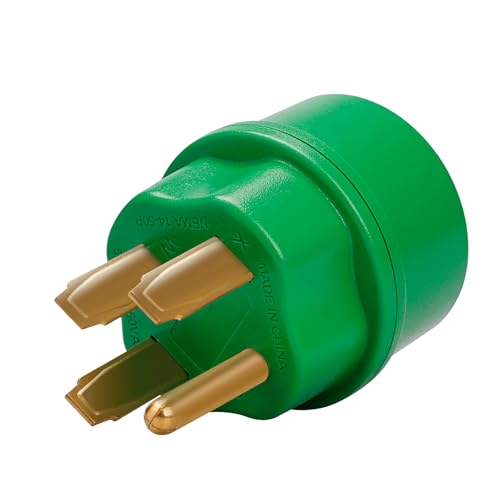

NEMA 14-50P to 14-50R Generator Adapter Plug (50A)
The NEMA 14‑50P to 14‑50R generator adapter plug is ideal for anyone who runs a 50‑amp RV or portable power system and needs a reliable, quick‑connect solution. It lets you attach a 50‑amp generator cord without the plug pressing against the generator wheel, which can cause poor insertion or vibration‑induced loss. The green ABS housing is heavy‑duty, so it stays strong in harsh weather. You’ll find the grip design makes insertion and removal easy, reducing strain on your hands.
Key points
- 50 A, 125 V/250 V rating supports up to 12 500 W.
- Four‑prong connector matches NEMA 14‑50P and 14‑50R.
- Compact size (2.56 × 4.53 × 4.53 in) and light weight (5.6 oz).
- Simple plug‑in use avoids modifying cords or equipment.
Follow the manufacturer’s instructions for secure connection and check the warranty page for support details.
- NEMA Configuration:14‑50P to 14‑50R
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):ABS
- Connector Type:Plug‑in (adapter)
- Certification:None listed
- Additional Feature:Grip‑design insertion aid
- Additional Feature:Prevents wheel interference
- Additional Feature:Lightweight (5.6 oz)
STARELO NEMA 14-50R 50A RV Power Outlet Box
If you need a compact, weather‑proof outlet for RVs, trailers, or a generator, the STARELO NEMA 14‑50R 50A RV Power Outlet Box fits the bill. It holds a 125/250 V, 50 A connection in a small ABS plastic box. The box is rated IP66, so it stays dry and dust‑free. Its dimensions are 3.93 × 3.93 × 0.04 in and it weighs 1.21 lb, making it easy to mount.
Key points
- Use 8 AWG or 10 AWG wire; avoid 6 AWG because space is limited.
- Seal the cover when not in use for waterproof protection.
- Connect to a generator transfer switch or RV shore‑power inlet.
- The unit is ETL listed, meeting safety standards for outdoor use.
Follow these steps for a reliable, safe RV power source.
- NEMA Configuration:14‑50R
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):ABS
- Connector Type:Outlet box (receptacle)
- Certification:ETL Listed
- Additional Feature:IP66 dust‑proof rating
- Additional Feature:Compact 0.04 in depth
- Additional Feature:Recommended 8‑10 AWG wire
QWORK 14-50P 50A RV Plug with Handle
Looking for a reliable plug that lets you connect a 50‑amp RV to a 125/250 V source without hassle? The QWORK 14‑50P male plug fits that need. It uses an ABS housing that resists heat and UV, so it lasts outdoors. The built‑in handle makes connecting and disconnecting easy. It accepts STW cable up to 1 inch outer diameter, with 6AWG/3C and 8AWG/1C wires.
Key points
- 2‑pole, 3‑wire design, 50 A, 250 V rating.
- Weight 11.1 oz; dimensions 5.91 × 3.94 × 1.97 in.
- ETL listed, 4.6/5 rating from 479 reviews.
Installation tip
– Strip cable to expose conductors, insert into the plug, tighten screws, and test voltage before use.
No cable comes with the plug, so pair it with a compatible cord. The warranty covers defects.
- NEMA Configuration:14‑50P
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):ABS
- Connector Type:Plug (male)
- Certification:ETL Listed
- Additional Feature:Built‑in ergonomic handle
- Additional Feature:Fits 1‑inch cable
- Additional Feature:Heat & UV resistant

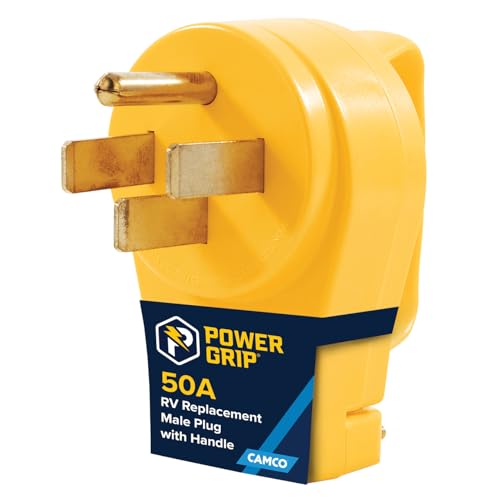

Camco 50A RV Plug with Ergonomic Handle
Camco’s 50‑amp RV plug with an ergonomic grip is ideal for anyone who frequently plugs and unplugs a heavy‑duty NEMA 14‑50 connection. The Power Grip handle lets you pull and push without straining your hand. It protects the cord head from damage and keeps the connection tight. You can attach it to a #4–#10 AWG extension cord in minutes. The plug is ETL listed and fits 125–250 V up to 12,500 W. It weighs about 9.6 oz and measures roughly 4 ⅜ × 3 × 4½ in.
Installation steps
- Strip the wire to the correct length.
- Insert each wire into the matching terminal.
- Tighten the screws securely.
- Test the connection before use.
Tips for use
- Keep the handle clean and dry.
- Check the wiring for wear regularly.
- Store the plug in a dry place when not connected.
- NEMA Configuration:14‑50P
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):ABS
- Connector Type:Plug (male)
- Certification:ETL Listed
- Additional Feature:Power‑Grip handle reduces fatigue
- Additional Feature:Polished exterior finish
- Additional Feature:Compatible #4‑#10 AWG wire
ENERLITES Straight Blade Angle Plug NEMA 14‑30/50P 50 A Black
The ENERLITES Straight Blade Angle Plug is ideal for anyone wiring a high‑current dryer, welder, or range. It fits NEMA 14‑30P and 14‑50P sockets, handling up to 50 A at 125/250 VAC. The black housing is reinforced polycarbonate thermoplastic, which resists abrasions, impacts, corrosion, and chemicals. Solid brass blades give reliable conductivity, and the terminals are clearly marked for easy identification.
Key features
- UL‑listed, 1‑year warranty.
- Dimensions: 2.6 × 2.6 × 3.43 in; weight 5.6 oz.
- Model 66351‑BK, black color.
Installation tips
- Verify the circuit matches the plug’s 14‑30 or 14‑50 rating.
- Use three‑wire cable with ground.
- Tighten terminals securely, but avoid over‑torquing.
Follow these steps for a safe, reliable connection.
- NEMA Configuration:14‑30P / 14‑50P
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):Polycarbonate thermoplastic (PCT)
- Connector Type:Plug (male, straight blade)
- Certification:UL Listed
- Additional Feature:Reinforced polycarbonate housing
- Additional Feature:Solid brass blades
- Additional Feature:Angle‑plug design

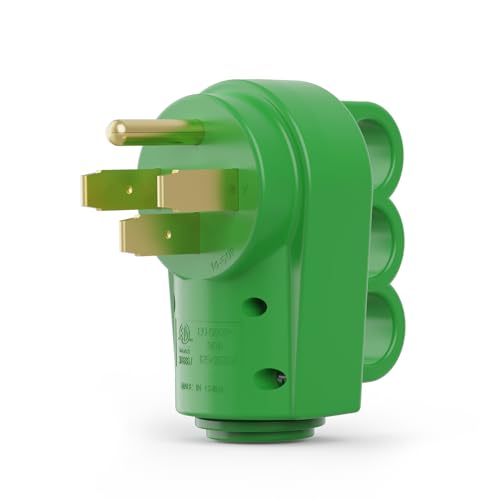

RVGUARD 50 Amp NEMA 14-50P Plug with Disconnect Handle Green
RVGUARD’s 50‑amp NEMA 14‑50P plug with a green disconnect handle is ideal for RV owners who need a reliable, high‑capacity connection for their power‑hungry setups. It fits a 6/3+8/1 RV cord and handles 125/250 V up to 12 500 W. The flame‑retardant ABS housing protects against heat, and copper pins ensure solid conductivity. The disconnect handle lets you pull the plug without touching live parts, reducing shock risk.
Key points to remember
- Verify the cord matches the 6/3+8/1 size.
- Use the inner clip and outer bushing for strain relief.
- Follow the clear wiring diagram; attach four conductors and the grounding wire.
- Mount the plug where the handle is easy to reach.
ETL listed, the plug meets safety standards and offers a durable, user‑friendly solution for your RV power needs.
- NEMA Configuration:14‑50P
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):ABS (flame‑retardant)
- Connector Type:Plug (male) with disconnect handle
- Certification:ETL Listed
- Additional Feature:Disconnect safety handle
- Additional Feature:Flame‑retardant ABS/PC mix
- Additional Feature:Inner clip + outer bushing strain relief

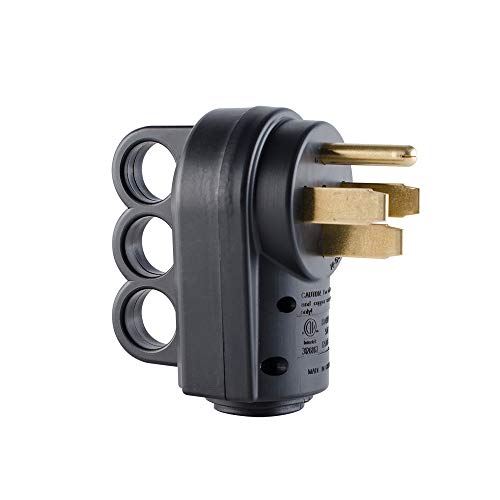

Veepeak 50A RV Plug Extension with Grip Handle
If you need a reliable way to replace a worn 50‑amp RV plug, the Veepeak 50A RV Plug Extension with Grip Handle fits the bill.
- Plug type – NEMA 14‑50P, four‑prong, 250 V, 12,500 W max.
- Construction – ABS housing, UV‑resistant, flame‑retardant, ETL listed.
- Installation – Accepts 6 AWG/3 C + 8 AWG/1 C wire, includes strain‑relief clip, bushing, and clear booklet.
- Ergonomics – Grip handle with three‑hole design for safe plug/unplug.
- Weight: 10.2 oz; dimensions: 4.7 × 2.8 × 4.3 in.
- Warranty: one‑year hassle‑free replacement, 100 % customer support.
Use this extension to rebuild a damaged cord quickly and safely.
- NEMA Configuration:14‑50P
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):ABS
- Connector Type:Plug (male) with grip handle
- Certification:ETL Listed
- Additional Feature:3‑hole ergonomic grip
- Additional Feature:UV‑resistant flame‑retardant ABS
- Additional Feature:Strain‑relief clip & bushing

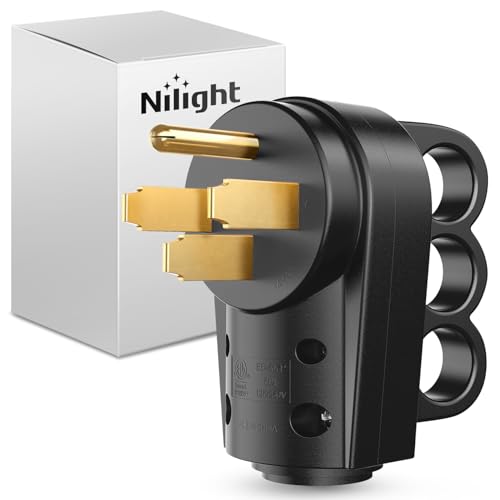

Nilight 50 Amp RV Male Plug (NEMA 14‑50P) with Handle
Who needs a reliable, easy‑to‑handle power connection for a 50‑amp RV? The Nilight NEMA 14‑50P plug gives you a sturdy, ETL‑certified solution that fits 6/3+8/1 50A STW cords. Its ABS housing protects the high‑conductivity terminals, and the strain‑relief clip grips the cable securely. The handle keeps your fingers away from the prongs and lets you hang the plug when not in use.
Key points
- Compatibility – Works with standard 50 A RV cords.
- Safety – ETL listed, heavy‑duty ABS, inner strain‑relief, outer bushing.
- Installation – Follow the included guide; replace broken plugs quickly.
- Dimensions – 5.08 × 5 × 3.23 in, weighs 11 oz.
- Warranty – 30‑day Amazon return, manufacturer support available.
- NEMA Configuration:14‑50P
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):ABS
- Connector Type:Plug (male) with handle
- Certification:ETL Certified
- Additional Feature:Hanging‑storage handle
- Additional Feature:Heavy‑duty ABS housing
- Additional Feature:Inner strain‑relief clip

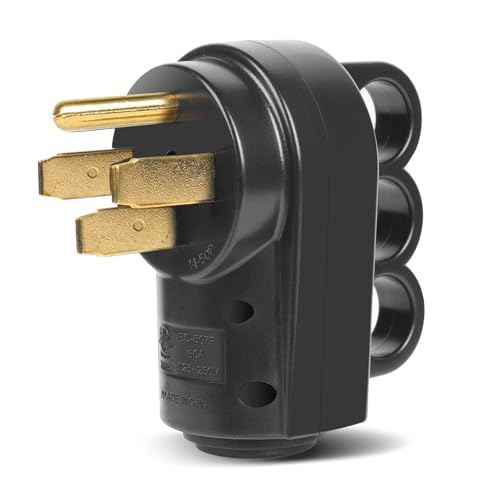

RV NEMA 14-50P 50A Male Power Plug (ETL Certified)
The RV NEMA 14‑50P 50A male power plug is ideal for anyone who runs a high‑draw RV or camper and needs a reliable, ETL‑certified connection. It fits 6AWG/3C, 8AWG/1C, or 10AWG/3C cords and handles 125 V or 250 V. The ABS housing resists heat, and copper contacts keep power steady. An ergonomic handle lets you pull it out quickly. Installation follows clear steps, so you don’t need an electrician.
Key points
- Verify cord size matches plug rating.
- Strip wires, insert into copper terminals, tighten screws.
- Use the strain‑relief clip to secure the cable.
- Test with a voltmeter before use.
You’ll get an 18‑month warranty and 24/7 support.
- NEMA Configuration:14‑50P
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):ABS
- Connector Type:Plug (male)
- Certification:ETL Certified
- Additional Feature:Copper contact conductors
- Additional Feature:Rugged high‑heat ABS shell
- Additional Feature:Easy‑install wiring guide

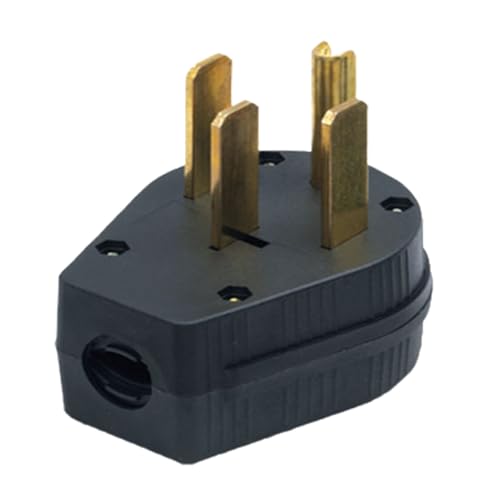

NEMA 14-50P 50 Amp 125/250V Heavy-Duty Plug
Heavy‑duty appliances like electric ranges, dryers, or EV chargers need a reliable 50‑amp, 125/250 V connection, and the NEMA 14‑50P plug delivers just that. You’ll find a sturdy ABS shell that resists impacts and flame‑retardant material that lasts long. The three brass contacts give solid pressure and good conductivity. Terminals are labeled, and pressure plates protect the wires from wear. The plug features a hinged shell for quick assembly and a built‑in rejection that stops closure if blades mis‑position.
.
- NEMA Configuration:14‑50P
- Voltage Rating:125 V/250 V
- Amperage Rating:50 A
- Material (Housing):ABS
- Connector Type:Plug (male)
- Certification:None listed
- Additional Feature:Built‑in blade‑mis‑position rejection
- Additional Feature:Thermoplastic impact‑resistant shell
- Additional Feature:Hinged shell for quick wiring
Factors to Consider When Choosing Nema 14-50 Plug Wiring
- Match the plug’s amperage capacity to your device’s draw, or you risk overheating.
- Verify the voltage rating matches your power source and the wire gauge you choose.
- Keep connector type consistent and consider weather‑proofing if the outlet will be exposed.
Amperage Capacity Matching
How do you guarantee your NEMA 14‑50 wiring can handle the load?
- Check the amperage rating. The plug must be rated 50 A or higher.
- Match the cord size. Use 6 AWG/3C or 8 AWG/1C copper conductors for a 50 A circuit.
- Avoid undersized parts. Do not pair a 50 A plug with cords or devices rated below 50 A.
- Choose copper contacts. Pick corrosion‑resistant, high‑conductivity copper for reliable current flow.
- Verify certification. Ensure the assembly is ETL‑listed or similarly certified for 50 A, 125/250 V operation.
Voltage Rating Compatibility
After checking amperage, you need to ensure the voltage rating matches your setup.
- Confirm the plug rating. NEMA 14‑50 handles both 125 V and 250 V, so you can use either voltage if the rest of the system supports it.
- Verify the outlet or adapter. It must be rated for 50 A at the voltage you choose; otherwise it will overheat or trip.
- Match equipment rating. Look at the device’s label; it should list 125 V/250 V dual‑rating or a single voltage that matches your outlet.
- Check wiring and insulation. The conductors must carry 50 A at the intended voltage, typically 6 AWG for these circuits.
- Use only components (plug, cord, receptacle) that share the same voltage rating.
- If any part is 125 V‑only, keep the whole system at 125 V.
- For 250 V operation, ensure every part is dual‑rated.
Wire Gauge Selection
What should you look at when picking the right wire gauge for a NEMA 14‑50 plug?
- Current rating – Use at least 6 AWG for a 50 A circuit.
- Conductor count – You need three hot/neutral conductors plus a grounding wire.
- Cable specifications – Many plugs call for 6/3 + 8/1 or 6/3 + 8/1C. Avoid smaller gauges; they overheat under full load.
- Run length – Longer runs increase voltage drop. Choose a gauge that keeps drop low, especially for up to 12,500 W loads.
- Insulation rating – Pick insulation that handles outdoor exposure and high temperatures.
- Code compliance – Follow local codes for 50 A RV or industrial installations.
If space is tight, some designs allow 8 AWG or 10 AWG in short, protected boxes, but 6 AWG remains the safest default.
Connector Type Consistency
Choosing the right connector type keeps your NEMA 14‑50 setup safe and reliable.
- Match the plug to the receptacle. Use a 4‑prong, 50 A plug that fits a NEMA 14‑50R. Mismatched plugs can cause loose contacts.
- Keep voltage ratings the same. Both plug and outlet must support 125/250 V. Different ratings can overheat wiring.
- Verify pole and wire count. Your plug should have three poles and four wires, just like the receptacle. This ensures proper grounding and conductor alignment.
- Watch for extra features. Handles or ergonomic designs must not change the electrical dimensions or configuration.
- Use the same material. If you choose ABS housing for one part, use ABS for the other to maintain durability and compatibility.
Follow these steps to keep your connection consistent and your system stable.
Weather‑Proofing Requirements
How do you keep a NEMA 14‑50 plug safe from rain and dust? Use an IP66‑rated housing or outdoor‑rated enclosure. Choose components that are ETL‑listed or UL‑listed for weather exposure. Follow these steps:
- Select the right enclosure
- IP66 rating blocks water and dust.
- ABS or reinforced polycarbonate resists UV and heat.
- Use gasket‑sealed covers when the plug isn’t in use.
- Fit weatherproof enclosures around the receptacle.
- Install inner strain relief and outer bushings.
- Ensure the cord entry is sealed against moisture and debris.
These measures keep the plug dry, dust‑free, and durable for outdoor power‑hungry setups.
Safety Certification Verification
Ever wonder if your NEMA 14‑50 wiring truly meets safety standards? Check the certification marking before you install.
- Look for ETL or UL labels. These show a third‑party lab tested the plug.
- Verify the label reads ETL Listed or cETL. cETL means the product passes regional code checks.
- Ensure the certification includes voltage and current ratings. A proper plug will list 125/250 V and 50 A.
- Keep the documentation. It backs warranty claims and proves compliance.
- Always match the marking on the device with the paperwork.
- Do not rely on unmarked or generic plugs.
Following these steps helps you pick a plug that passes safety checks and works reliably.
Frequently Asked Questions
Can I Use a Nema 14‑30 Plug for a 50‑Amp RV Load?
No, you can’t safely use a NEMA 14‑30 plug for a 50‑amp RV load. The 14‑30 is rated for 30 amps, so it will overheat and trip under 50‑amp demand.
- Install a NEMA 14‑50 receptacle.
- Use 6 AWG copper wire.
- Verify the circuit breaker matches 50 amps.
- Check the RV’s plug type matches the outlet.
Follow local electrical codes and hire a qualified electrician.
Do I Need a Dedicated Breaker for a Nema 14‑50 Outlet?
- Yes, you need a dedicated breaker for a NEMA 14‑50 outlet.
- Use a 50‑amp double‑pole breaker.
- Run four‑wire cable (hot‑hot‑neutral‑ground) from the panel.
- Connect each hot to the breaker’s terminals.
- Tie the neutral to the panel’s neutral bus.
- Bond the ground to the panel’s ground bus.
- Verify the breaker trips only the outlet, not other circuits.
What Wire Gauge Is Required for a 50‑Amp Nema 14‑50 Circuit?
- Use 6 AWG copper wire for a 50‑amp NEMA 14‑50 circuit.
- If you prefer aluminum, go with 4 AWG.
- Keep the wire length under 100 feet to avoid voltage drop.
- Run two hot wires, one neutral, and a ground.
- Secure the conductors in a 50‑amp breaker.
- Check local codes; some areas may require larger conductors.
Is a Ground‑Fault Circuit Interrupter Required for Nema 14‑50 Installations?
Yes, you need a ground‑fault circuit interrupter (GFCI) for any NEMA 14‑50 installation in a wet or outdoor location.
- Check local code – most jurisdictions require GFCI where the outlet is exposed to moisture.
- Install a 50‑amp GFCI breaker or a GFCI receptacle rated for 14‑50.
- Verify the GFCI trips correctly before using high‑draw appliances.
Follow these steps and you’ll stay safe and compliant.
Can I Install a Nema 14‑50 Outlet Outdoors Without a Weatherproof Box?
You can’t put a NEMA 14‑50 outdoors without a weather‑proof box. The box protects the wiring from rain, snow, and UV damage.
- Install a UL‑listed outdoor-rated enclosure.
- Use a gasketed cover that locks in place.
- Run conduit into the box, sealing all connections.
- Mount the outlet inside the box, then attach the cover.
Skipping the box violates code and risks short circuits or fire.
